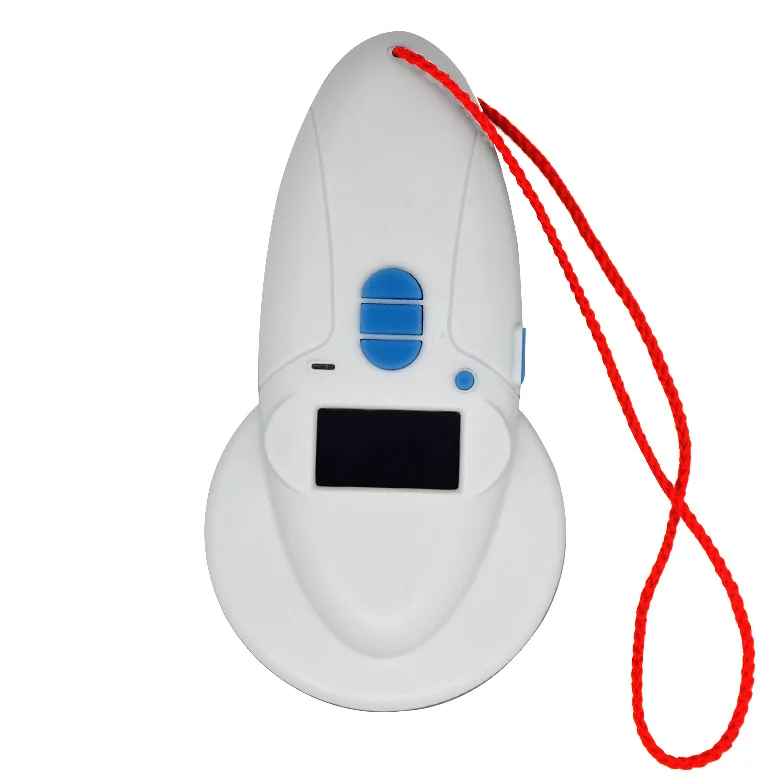

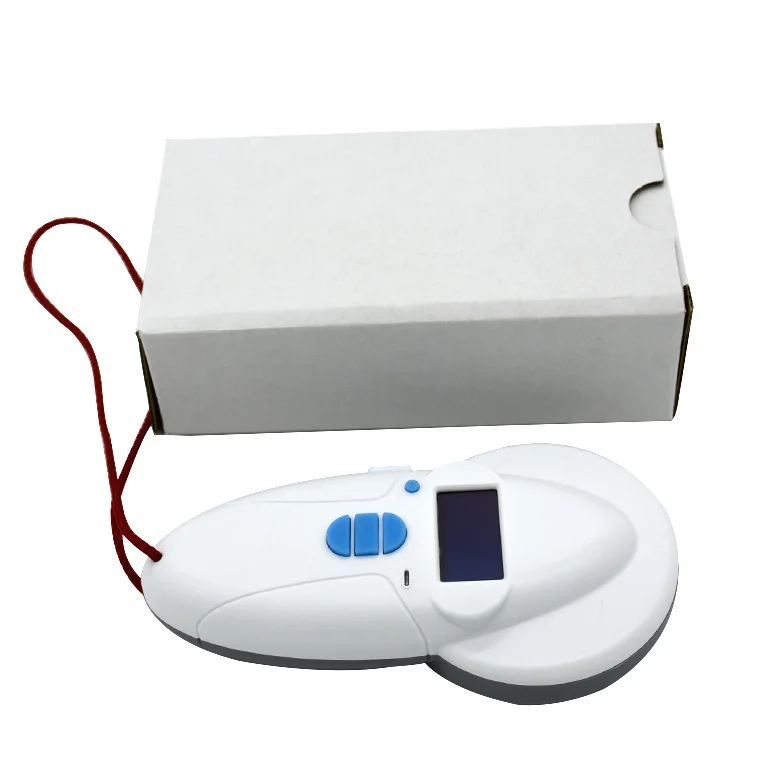

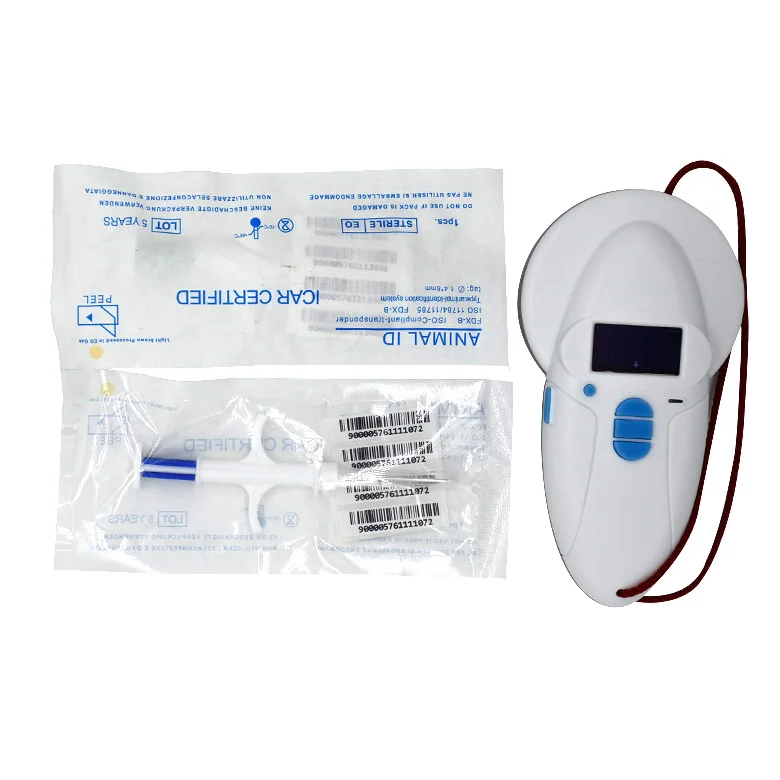

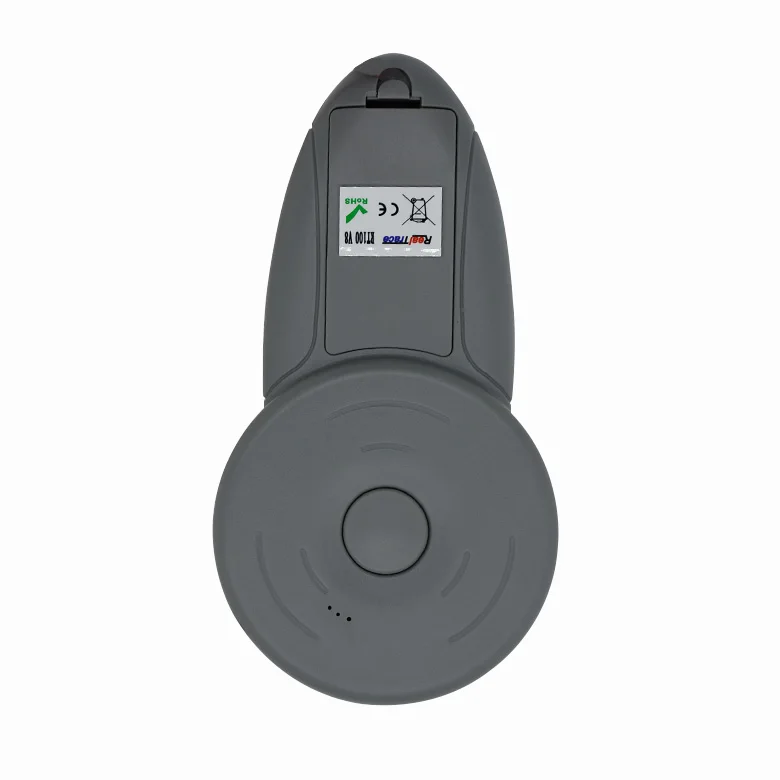

Wholesale long range portable 134.2khz animal ID handheld rfid reader

  • Brand : JW:
  • Model:JW500:
  • Frequency:134.2kHz,125KHz:
  • Reading Standard:ISO11784/5,FDX-A,FDX-B,HDX,EM4102:
  • Communication Mode:USB & Bluetooth:
  • Reading Distance:16 CM (27 mm circular inlay)  8 CM (12mm glass tag ):
  • Screen:128*64 OLED:
  • Operation Temperature:-5°C-40°C:

Wholesale long range portable 134.2khz animal ID handheld rfid reader

Product details

Wholesale long range portable 134.2khz animal ID handheld rfid reader



This handheld reader dedicated to the field of animal identification, can detect meet ISO11784/85 standard animal tag, product use advanced RF transmitting/receiving circuit and embedded microcontroller controller, and combine with strict decoding arithmetic to receive ISO11784/85 compatible tag, check and read data, with receive high sensitivity, small working current, easy to take, Cost-effective and so on feature, data can show on screen in time, and communicate with PC through Bluetooth or USB interface, then transfer animal code and relative operation data to backend database.



Tech specification:

Brand

                                   JW

Model

JW500

Frequency

134.2kHz,125KHz

Reading Standard

ISO11784/5,FDX-A,FDX-B,HDX,EM4102

Communication Mode

USB & Bluetooth

Reading Distance

16 CM (27 mm circular inlay)  8 CM (12mm glass tag )

Screen

128*64 OLED

Operation Temperature

-5°C-40°C

Dimensions

155*82*33mm

Term of Service

1 year

Power Supply

3.7V 1400mA rechargeable battery

Charging

By mini USB port

Certifications

CE and FCC



1) Can read all FDX-B type electronic chips (complying with standard ISO11784), FDX-A chips and HDX chips.

2)Save 1,000 ID codes in memory transfer to PC

3) ISO FDXB tag compatible with the possibility to write additionals data Two phones numbers

4) Seven languages supported.

5)More extensive reading range, beyond 8cm to read glass tag

6)OLED display, sunlight readable

7) Rechargeable battery by mini USB port

8) Built-in Bluetooth
