HF RFID FPC Tag
Our HF RFID FPC tags (Flexible Printed Circuit) are ultra-thin, bendable, and high-temperature resistant, designed for space-limited, curved, or harsh-environment identification. Operating at 13.56MHz (HF/NFC), they support mainstream protocols and are widely used in asset management, smart wearables, medical devices, tool tracking, and anti-counterfeiting.
Key Features
Ultra-thin & Flexible: 0.15mm thickness, polyimide (PI) base, bendable & conformable to curved surfaces
High Frequency: 13.56MHz, ISO14443A / ISO15693 / NFC Forum Type 2

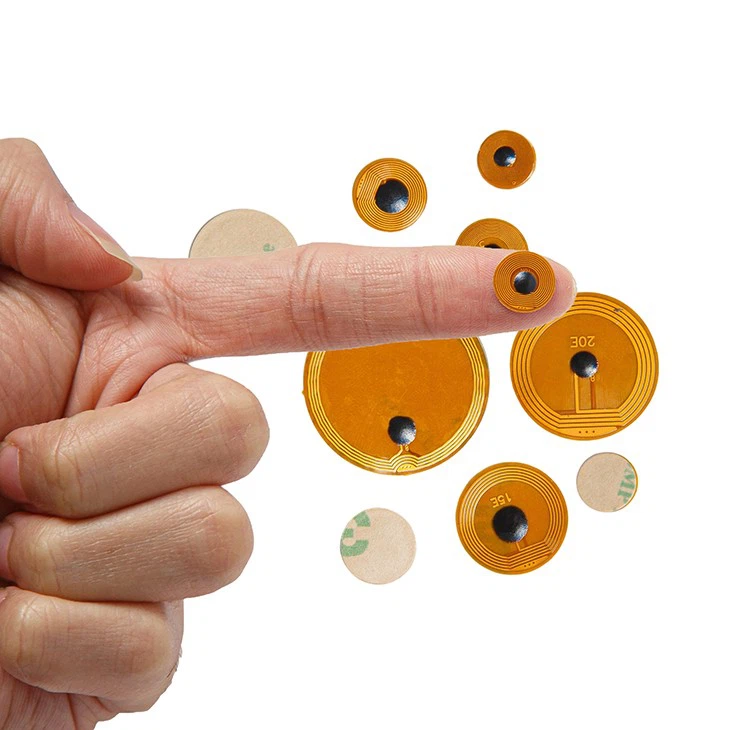

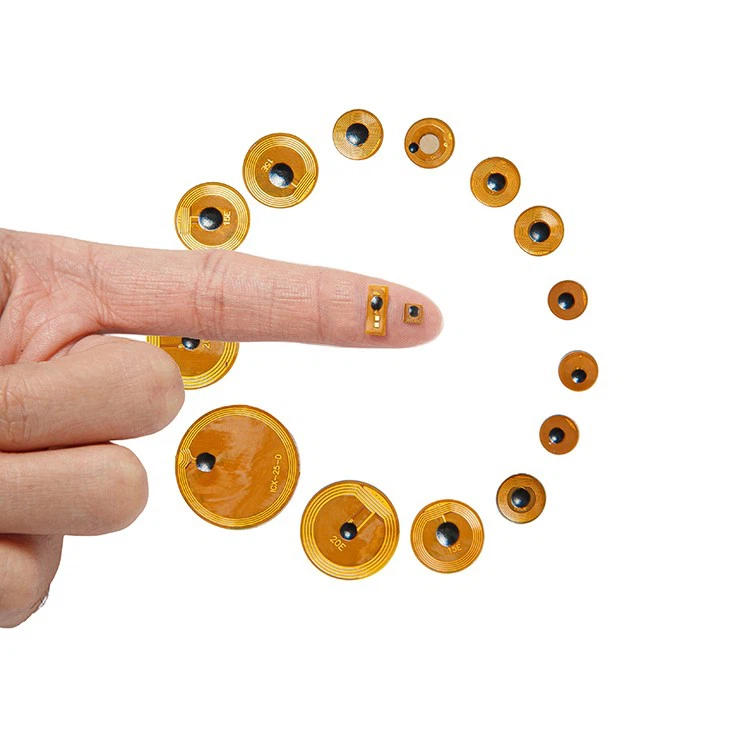

Mini Size: Multiple sizes (e.g., 8mm dia, 9×18mm, 12×12mm) or custom shapes
High Temp Resistance: -30°C to +280°C, compatible with industrial soldering & encapsulation
Durable Antenna: Etched copper antenna, stable read performance even under bending
On-Metal Option: With ferrite layer for reliable reading on metal surfaces
Adhesive Backing: 3M adhesive for easy peel-and-stick installation
Reusable & Rewritable: Up to 100,000 read/write cycles, 10+ years data retention
Specifications
Frequency: 13.56MHz (HF/NFC)
Protocols: ISO14443A, ISO15693, NFC Forum Type 2
Chip Options: NTAG213/215/216, ICODE SLIX, Mifare 1K/4K, FM1108
Memory: 144 bytes ~ 1K user memory (depending on chip)
Read Range: 1–5cm (air), 1–3cm (on metal, with ferrite)
Material: FPC (Polyimide) + Copper Antenna
Thickness: 0.15mm (inlay), 0.6–1.0mm total with adhesive
Operating Temp: -30°C ~ +280°C
Storage Temp: -40°C ~ +85°C
Installation: Self-adhesive / Embedded / Encapsulated
Applications
Asset tracking & inventory management (tools, equipment, IT devices)
Smart wearables & silicone wristbands
Medical device & lab equipment tracking
Automotive parts & industrial component identification
Brand anti-counterfeiting & product authentication
Embedding in plastic, silicone, or epoxy housings
Metal surface tagging (with ferrite shield)
Customization
We support OEM/ODM: custom size, shape, antenna design, chip selection, printing, and ferrite layer. Fast sampling (2–3 days) and bulk production with stable quality.
Products Feature & Details
Factory & Company View
FAQ
1. What does FPC mean?
FPC = Flexible Printed Circuit. It's a thin, bendable circuit board made of polyimide (PI), allowing the tag to flex and fit curved surfaces.
2. Is this tag NFC compatible? Can phones read it?
Yes. We offer NFC chips (NTAG213/215/216) that can be read by most Android/iPhone NFC-enabled phones.
3. Can it work on metal?
Standard FPC tags work best on non-metal. For metal surfaces, choose our ferrite-shielded version for stable reading.
4. What's the maximum temperature it can handle?
Standard: -30°C to +280°C, suitable for soldering, molding, and industrial curing processes.
5. How to install the tag?
It has 3M self-adhesive backing - just peel and stick. It can also be embedded or encapsulated in silicone/plastic.
6. What's the read range?
1–5cm in air; 1–3cm on metal (ferrite version). Range depends on reader power and environment.
7. Can you customize size/shape/printing?
Yes. We provide custom FPC tags with your size, shape. Fast sampling.
8. How many write cycles does it have?
Up to 100,000 read/write cycles, with 10+ years data retention (non-volatile memory).
