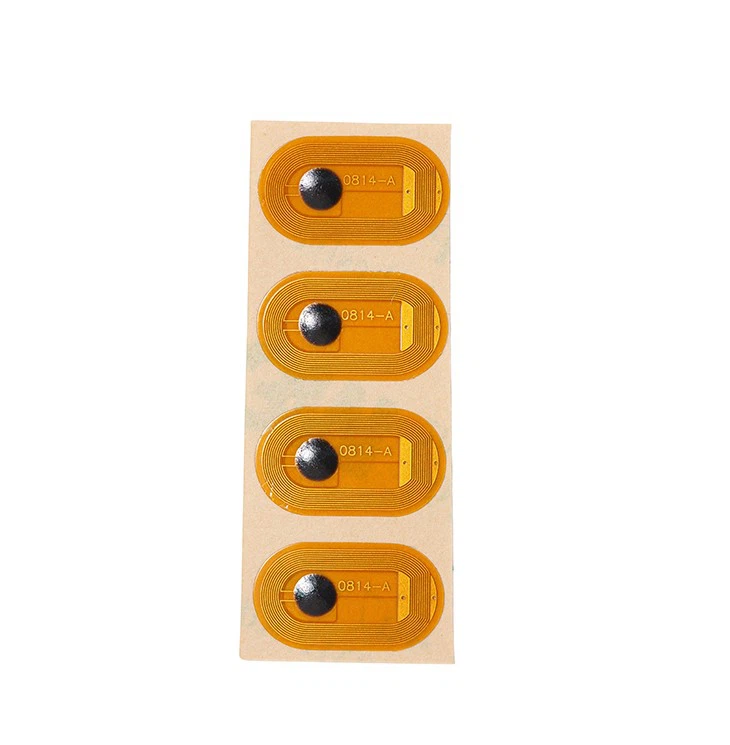

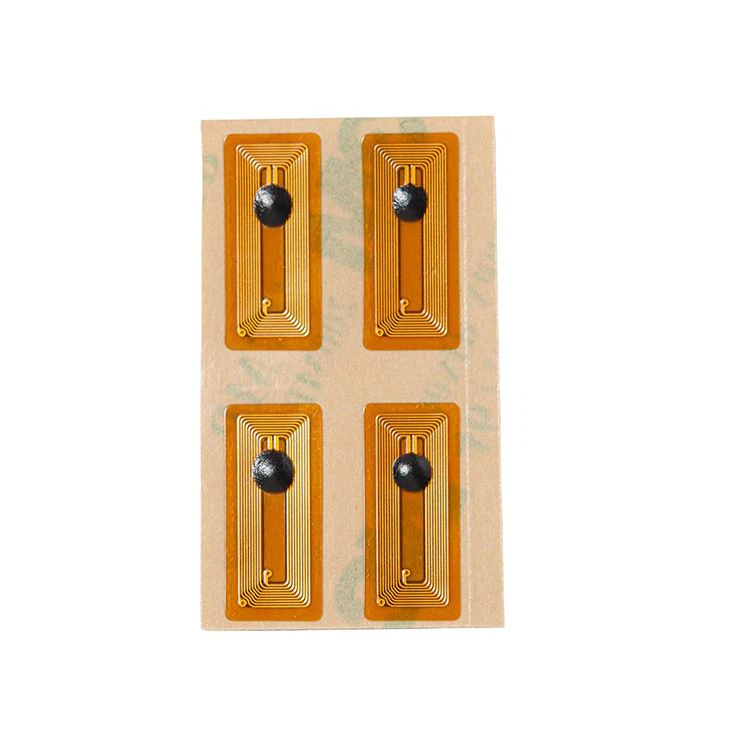

NFC FPC RFID Tag
NFC FPC RFID Tag is an ultra‑thin, flexible high‑frequency RFID tag built on FPC (Flexible Printed Circuit) substrate. Working at 13.56MHz with standard NFC Forum Type 2 / ISO14443A protocol, it enables reliable contactless communication with NFC‑enabled smartphones and readers.Thanks to its 0.15–0.2mm thickness, small footprint, and high temperature resistance (−30°C to +280°C), it is widely used for asset tracking, product authentication, jewelry management, medical tools, silicone wristbands, and anti‑metal embedding projects.
🔹 Key Features
Ultra‑thin & Flexible: FPC polyimide base, bendable, conforms to curved surfaces.

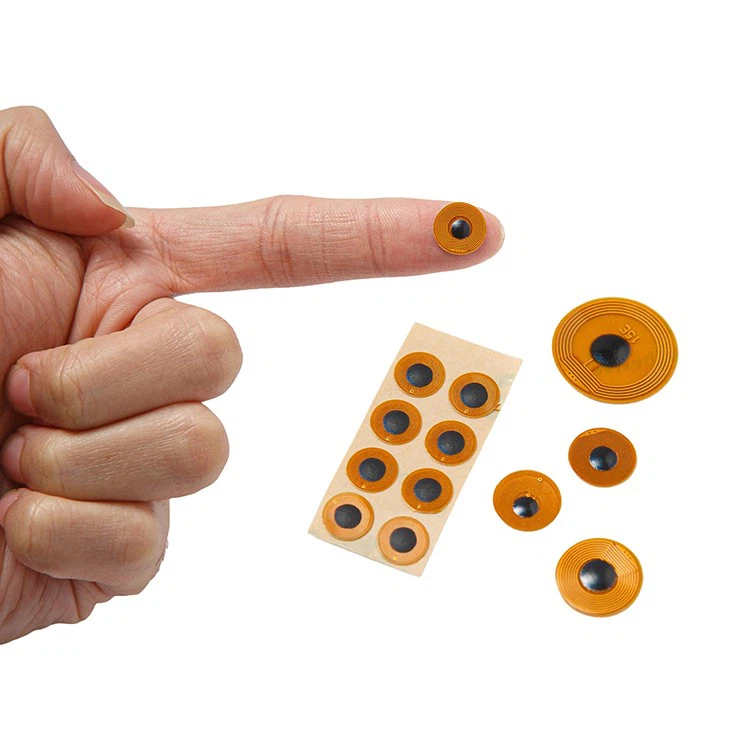

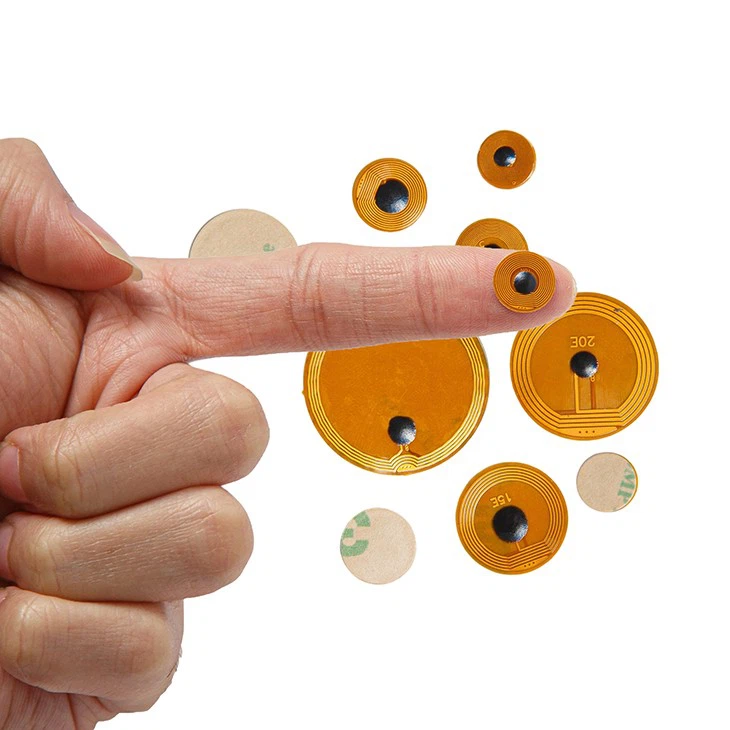

Small Size: From 5×5mm / Ø6mm up to custom shapes.
NFC‑Enabled: 13.56MHz, ISO14443A, compatible with all NFC phones.
High Temperature Resistance: −30°C ~ +280°C (short‑term peak), suitable for injection molding & baking processes.
Anti‑Metal Optional: With ferrite layer for stable reading on metal surfaces.
Durability: IP68 waterproof, 100,000 write cycles, 10‑year data retention.
Strong Adhesion: 3M adhesive backside for easy mounting.
🔹 Specifications
Frequency: 13.56MHz (NFC/HF)
Protocol: ISO14443A, NFC Forum Type 2
Chip Option: NTAG213/215/216, Mifare 1K, ICODE SLIX, etc.

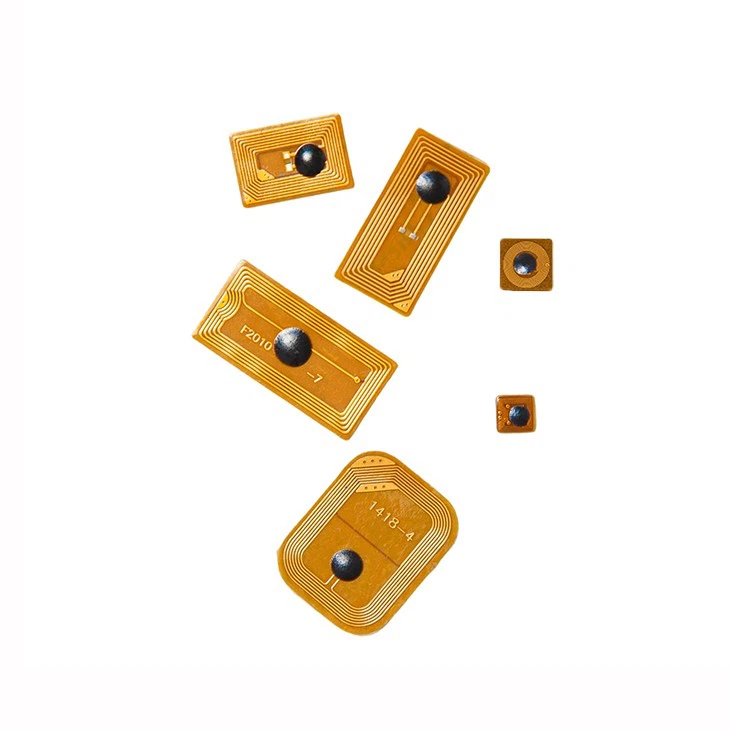

Size: 5×5mm, 6×6mm, 7×7mm, 10×10mm, 12×22mm, custom
Thickness: ~0.2mm
Reading Distance: 1–2cm (mobile phone), up to 5cm with dedicated reader
Operating Temp: −30°C to +85°C (continuous); up to +280°C (short‑term)
Color: Yellow (standard), custom upon request
Certification: CE, RoHS, REACH
🔹 Common Applications
Wearables: Silicone RFID wristbands, smart jewelry
Electronics: PCB marking, component tracking
Medical: Surgical tools, device ID, sterilization tracking
Luxury & Retail: Jewelry, cosmetics, high‑value goods authentication
Industrial: Anti‑metal asset tracking, mold embedding, WIP management
Smart Home: Device pairing, tap‑to‑share, NFC trigger labels
Products Feature & Details
Factory & Company View
FAQ
1. Can I read this tag with a normal NFC smartphone?
Yes. It uses standard 13.56MHz ISO14443A / NFC Forum Type 2. Most Android and iOS (iOS 13+) NFC phones can read/write directly.
2. What is the reading range?
Typical 1–2cm with mobile phones; 2–5cm with professional HF readers. FPC tags are designed for close‑range, high‑reliability use.
3. Can it work on metal surfaces?
Standard FPC tags may suffer interference on metal. We offer anti‑metal version with ferrite layer for stable performance on metal.
4. Is it waterproof and heat resistant?
Yes. IP68 waterproof; operating −30°C to +85°C, short‑term up to +280°C for molding/baking.
5. Can I customize size, shape, printing or pre‑encoding?
Absolutely. We support custom dimensions, and pre‑encoding URLs/text/UID according to your requirements.
6. What's the MOQ and sample policy?
MOQ starts at 100 pcs. Free blank samples are available; buyer covers freight. Custom samples take 3–5 days.
7. How long does the data last?
10‑year data retention; up to 100,000 read/write cycles (chip‑dependent).
