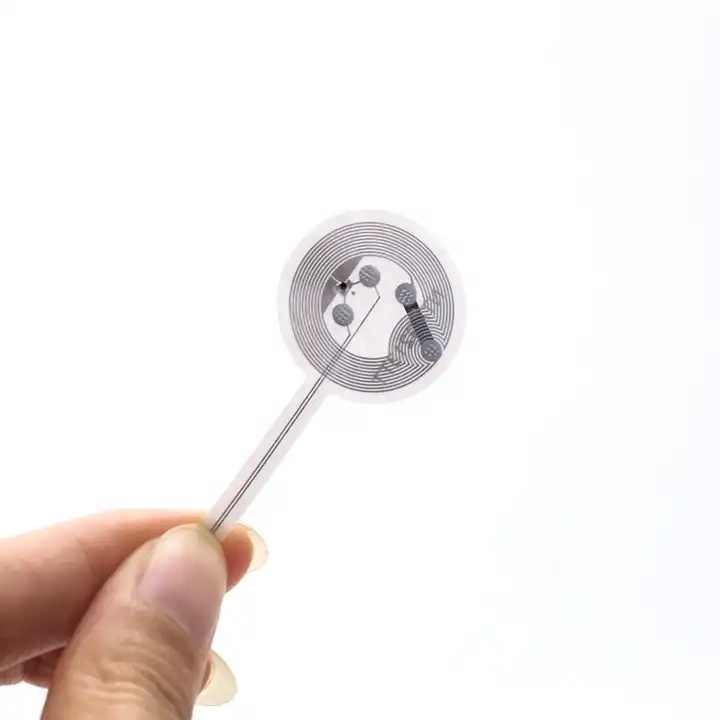

Fragile NFC Sticker Tag
Tamperproof / Fragile NFC Tag is designed for anti-counterfeit. It uses fragile materials, such as a fragile antenna, shredded paper, or anti-peeling antenna, to ensure that the tag is not transferable.
Send Inquiry
Chat Now
Product Introduction
The complete fragile label can be identified by card reader or NFC mobile phone. The damaged label is unreadable or detection status changed, so the authenticity and integrity of the product can be detected at one time.
How TAG ( 213 Tag Tamper / 424 DNA Tag Tamper ) works Typically, the tags are used to detect the opening of the packaging. The antenna structure of tag can be seen as two parts:
1. The main antenna loop to transmit radio waves between the RFID reader and IC chip.
2. The detection loop or detection wire. In case of an open or break of detection wire, the chip permanently stores this change.
The information status of the Tag Tamper wire can be mirrored in ASCII code into the user memory and subsequently reported to the cloud.
In addition, 424 DNA TT with AES-128 cryptography. The NFC tag generates a unique NFC authentication message by each time it is being tapped with NFC mobile or reader . The unique URL with the SUN authentication message together sends to the host where the authentication take place, and return with the verification.
Application
* Advanced anti-counterfeiting ( Product authentication )
1. The main antenna loop to transmit radio waves between the RFID reader and IC chip.
2. The detection loop or detection wire. In case of an open or break of detection wire, the chip permanently stores this change.
The information status of the Tag Tamper wire can be mirrored in ASCII code into the user memory and subsequently reported to the cloud.
In addition, 424 DNA TT with AES-128 cryptography. The NFC tag generates a unique NFC authentication message by each time it is being tapped with NFC mobile or reader . The unique URL with the SUN authentication message together sends to the host where the authentication take place, and return with the verification.
Application
* Advanced anti-counterfeiting ( Product authentication )
Verify authenticity of physical goods and identify sales outside authorized markets
* Tamper detection and proof ( Smart packaging )
Detect unauthorized product opening to secure product integrity
* Secured exclusive user experiences based on product status
Enabled advanced user interactions, pre- and post-sale. Also reward customers with truly exclusive and personalized content,offers and privileges
* Secured sensitive data applications
Protect sensitive product and user data, or trigger an action upon a verified incidence, e.g., payment
* Secure authentication and configuration of closed loop devices
Authenticate consumables and parts, enable an integrity check, and automatically transfer device settings
* Tamper detection and proof ( Smart packaging )
Detect unauthorized product opening to secure product integrity
* Secured exclusive user experiences based on product status
Enabled advanced user interactions, pre- and post-sale. Also reward customers with truly exclusive and personalized content,offers and privileges
* Secured sensitive data applications
Protect sensitive product and user data, or trigger an action upon a verified incidence, e.g., payment
* Secure authentication and configuration of closed loop devices
Authenticate consumables and parts, enable an integrity check, and automatically transfer device settings
|
Parameters
|
|
|
Material
|
Fragile Paper/PET
|
|
Size
|
Antenna: 21*46mm, Tag: 25*51mm
|
|
Working frequency
|
13.56MHz
|
|
Available chips
|
213 TagTamper, 424 DNA TagTapmer
|
|
Tag Tamper feature
|
detecting if the TagTamper wire is open after startup
|
|
Operating distance
|
up to 100 mm
|
|
originality signature
|
ECC-based
|
|
213 TagTamper Data
|
|
|
UID
|
7-byte
|
|
Data transfer
|
106 kbit/s
|
|
Protocol
|
ISO/IEC 14443-A, NFC Forum Tag 2 Type
|
|
EEPROM
|
184 bytes organized in 46 pages with 4 bytes per page
|
|
User Memory
|
144 bytes
|
|
Input capacitance
|
50 pF
|
|
Data retention
|
10 years
|
|
Write endurance
|
100,000 cycles
|
|
424 DNA TagTamper Data
|
|
|
UID
|
7-byte
|
|
Protocol
|
ISO/IEC 14443-A, NFC Forum Tag 4 Type
|
|
Data transfer
|
106 kbit/s, 212 kbit/s, 424 kbit/s, 848 kbit/s
|
|
User Memory
|
416 bytes
|
|
Standard AES-128 cryptography for authentication/secure messaging, or LRP wrapped AES operation for even stronger attack resistance
|
|
|
SUN message authentication for advanced data protection within standard NDEF read operation
|
|
|
Input capacitance
|
50 pF
|
|
Data retention
|
50 years
|
|
Write endurance
|
200,000 cycles
|
Products Feature & Details
How to customize
Packing
Factory & Company View
Shipping
FAQ
1. How can I place an order?
Please provide the details of your requirements as clear as possible. For designing or further discussion, it is better to contact us Skype/Whatsapp, or other instant ways.
2. When can I get the price?
Usually within 5 hours after we get your inquiry.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples. Free for a blank/stocked sample to check the quality, as long as you afford the express freight. For printed samples, we will check $30-$100 to cover the cost on film&printing.
4. How long can I expect to get the samples?
After you pay the sample charge and send us confirmed files, the samples will be ready in 3-7days. The samples will be sent to you via express and arrive in 3-5 days.
5. What kind of files do you accept for printing?
AI, PDF, PSD, CDR, etc.
6. Can you do the design for us?
Yes, we have a professional team having rich experience in design and manufacturing. Just tell us your idea, we will help to carry out your idea into perfect product.
7. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally 7-15days for about 10,000-100,000pcs.
8. What is your terms of delivery?
We accept EXW, FOB, CNF, DDU, DDP, etc.
9. Could I print our own logo on the product?
Yes, it is customized order.
